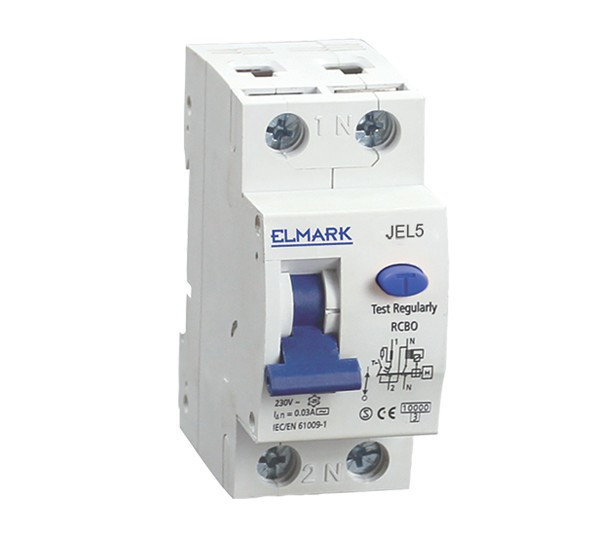

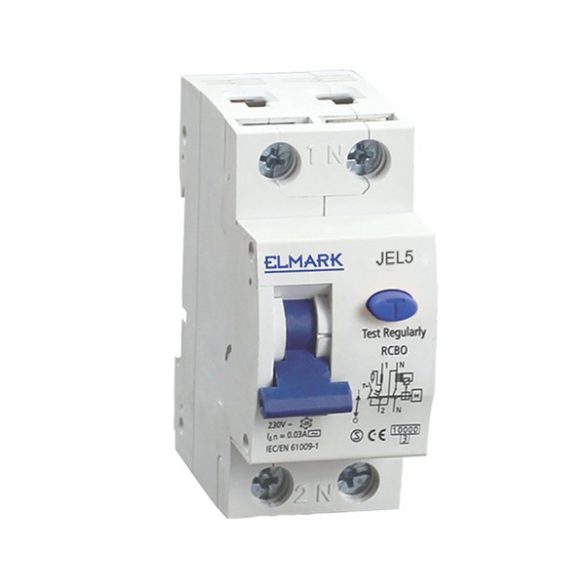

KOMBINÁLT ELEKTRONIKUS ÁRAMVÉDŐ KAPCSOLÓ JEL5 2P 10A/100mA

Description:
- Combined circuit breakers with residual current devices

Technical characteristics:
- Rated current: 10-40A
- Rated operating voltage: 230V,50Hz
- Rated residual current: 30/100/300/500mA
- Number of poles: 2
- Tripping curve of the circuit breaker: ?
- Surge voltage wear resistance: ≥2000V
- Activation time:
the residual current device <0.1s at IΔn and <0.04s at 2 IΔn
the circuit breaker: < 0.1s
- Ambient temperature: -10°÷65º?
- Installation altitude: up to 2000m

Mounting: Vertical on a DIN rail

Standards: EN61009-1; EN61009-2
