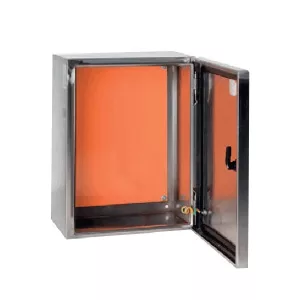

ROZSDAMENTES ACÉL FALON KÍVÜLI ELOSZTÓDOBOZ SXF 100/80/30

Technical characteristics:
- Rated voltage: up to 1000V
- Maximum current : up to 800A
- Dimensions:
   = Height: from 250mm to 1200mm
   = Width: from 250mm to 800mm
   = Depth: 150mm/ 200mm/ 250mm/ 300mm
- Mounting plate for fixing of the equipment
- Cover for the input-output conductors
- Grounding dowel pin
- Material: stainless steel
- IP code: IP65

Advantages:
- Option to change the opening direction
- Anti-corrosion coating preventing from rust forming
- Supplied with metal plate for fixing the electrical devices
- Locking mechanism which prevents from free access to the electrical materials mounted in the board

Functions:
- Used as low voltage distribution boxes
- Provide safe from atmospheric conditions and mechanical intervention environment of the equipment mounted in the board
- Used for protection, providing safety from accidental contact to the current conductive parts if working close to the board
- Prevent from accidental technological switching
- Used where special requirements about corrosion resistance in industrial buildings exist

Applications:
- Food Industry
- Chemical Industry
- Pharmaceutical industry
- Infrastructure

Mounting: Vertically on a flat surface

Standard: EN62208; EN60439-1; EN60439-3
