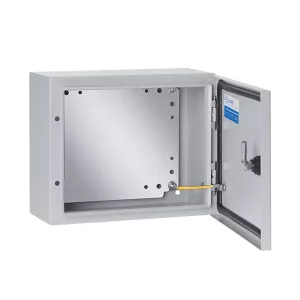

FÉM FALON KÍVÜLI ELOSZTÓDOBOZ JXF 40/60/20

Technical characteristics:
- Rated voltage: up to 1000V
- Maximum current: up to 1250A
- Dimensions:
   = Height: from 250 mm to 1800mm
   = Width: from 250mm to 10000mm
   = Depth: 150mm/ 200mm /250mm /300mm
- Mounting plate for fixing of the equipment
- Cover for the input-output conductors
- Grounding dowel pin
- Material: Steel
- IP code: IP65

Advantages:
- Option to change the opening direction
- The anti-corrosion coating prevents from rust forming
- Supplied with metal plate for fixing the electrical devices
- Locking mechanism which prevents from free access to the electrical materials mounted in the board

Functions:
- Provide safe from atmospheric conditions and mechanical intervention environment of the equipment mounted in the board
- Used for protection, providing safety from accidental contact to the current leading parts if working close to the board
- Prevent from accidental technological switching
- Used in building, domestic and office automation
- Used in cases requiring mounting the board outdoors

Applications:
- Industry
- Production
- Residential and office buildings
- Outdoor installation

Mounting: Vertically on a flat surface

Standards: EN62208; EN60439-1; EN60439-3
