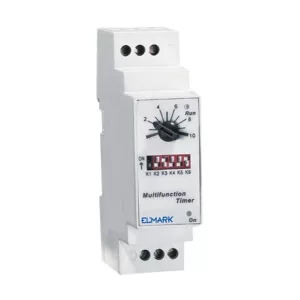

IDŐZÍTŐ TE 19M

Technical characteristics:
- Power supply voltage: 230V; 50Hz
- Adjustment range for operation: from 0.6sec to 100h
- Adjustment accuracy: ± 5% from the whole scale
- Reset time: <0.5 seconds
- Power consumption: < 5VA
- Electrical wear resistance: 100 000 cycle
- Mechanical wear resistance: 1 000 000 cycle
- Operating temperature: -10 to 65°?
- Humidity: 45 – 85% RH
- Commutation capacity: up to 5A
- Indication:
  = on power supply: red indication
  = on activated output relay: green indication
- Weight: 150g
- Time functions: according to the programming guide

Mounting: On a DIN rail
