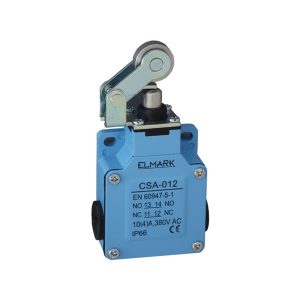

HELYZET KAPCSOLÓ CSA-012

Technical characteristics:
- Dielectric strength: 1000V AC
- Insulation Resistance: 100mΩ
- Electrical wear resistance (number of cycles): 500 000 at active load
- Mechanical wear resistance (number of cycles): 1 000 000
- Activation speed: 5mm/s to 0.5m/s
- Rated voltage: 230V
- Rated current: up to 10A
- IP code: IP65
- Ceble input: cable gland PG11
- Section of the power supply conductor: to 2mm2
- Fastening strength of terminals: 6-8kgf/cm

Standards: EN 60947-1; EN 60947-5-1
