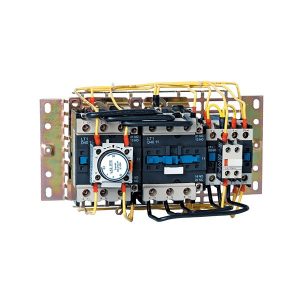

CSILLAG-DELTA MOTORINDÍTÓ LT3-B 40A/400V 50HZ

Technical characteristics of LT3:
- Rated operating current range: to 93A A?
- Rated voltage of the controlling voltage: 400V A?;50/60Hz
- Rated operating voltage: 690V
- Insulation voltage: >690V
- Surge voltage wear resistance: ≥6000V
- Option for change of the power supply operating voltage
- IP code: IP54
- Ambient temperature : -10° to 65º?
- Maximum altitude: up to 2000m

Advantages:
- Low power consumption and small dimensions
- High reliability of the current parameters
- High efficiency and long term of operation
- The metal body is covered with corrosion-proof paint
- Possibility for operation at higher frequency

Functions:
- Switching on/off alternating current three phase
  motors operating according to a scheme “star-delta”
- Does not allow secondary unwarranted switching
  on of the starter at transitory lowering of the voltage
- Protects the motor from overload in the range of
  the corresponding thermal protection
- Indication of the operating condition through a
  valve indicator
- Possibility for mounting of additional contacts (for the open type)

Applications:
- Industry
- Infrastructure

Mounting: To a flat surface using bolts/screws

Standard: EN60947-1; EN60947-4-1; LVD; EMC
