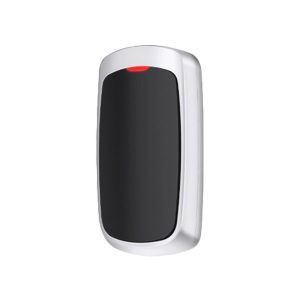

EL-M005 RFID MINI WIEGAND CARD READER 125KHz, IP68

EL-M005 is IP68 metal case RFID Wiegand card reader for entry solutions. This system is a wired communication interface that operates between a reader and a controller
FEATURES
• Metal shell, anti-vandal
• Very low power consumption,standby current less than 30mA
• WG 26 output
• Fast Search speed: time between reading card and opening the door is less than 0.1s
TECHNICAL DATA
• Type: Waterproof metal case mini Wiegand card reader
• Model: EL-M005
• Working frequency: 125KHz
• Card type: EM (RFID)
• Card reading distance: 2-5cm
• Working voltage: 12V DC
• Static current: ≤35mA
• Wiegand interface: 26bit/34bit
• Working temperature: from -40°C to 60°C
• Humidity: 90% RH (non-condensing)
• IP code: IP68
• Material: Metal
• Dimensions (LxHxD): 48x95x19mm
