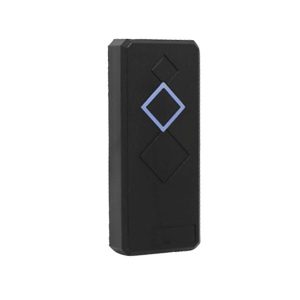

EL-PCD97 RFID MINI WIEGAND CARD READER 125KHz

Wiegand refers to the technology used in card readers and sensors. This system is a wired communication interface that operates between a reader and a controller.
TECHNICAL DATA
• Type: Mini Wiegand card reader
• Model: EL-PCD97
• Working frequency: 125KHz
• Card type: EM (RFID)
• Card reading distance: 5-10cm
• Working voltage: 5-16V DC
• Static current: ≤80mA
• Output Format: 26bit/34bit Wiegand
• Communication Distance: 100M
• Working temperature: from -20°C to 65°C
• Humidity: 90% RH
• Material: ABS
• Dimensions (LxWxH): 80x43x14mm
