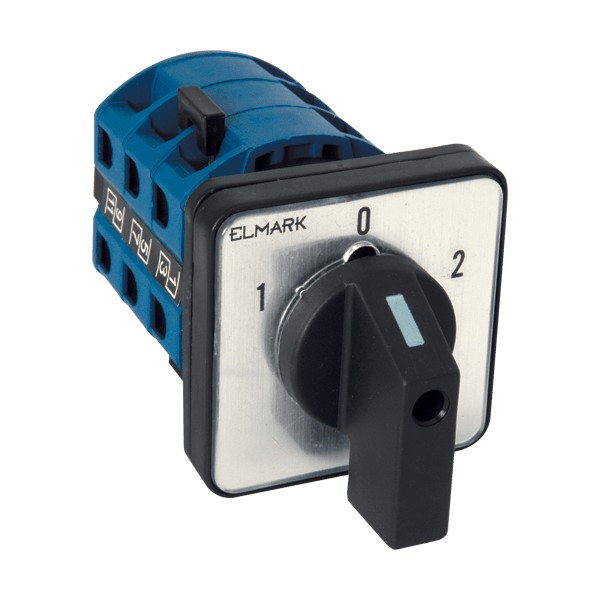

FORGÓ KAPCSOLÓ LW26-160S 160A , 4 SZINT , 3 POZÍCIÓS

FORGÓ KAPCSOLÓ LW26-160S 160A , 4 SZINT , 3 POZÍCIÓS

Technical characteristics:
- Power supply voltage: 230/400V, 50Hz
- Number of levels: 4
- Number of positions: 3
- Insulation voltage: 690V
- Impulse voltage withstand: 6000V
- Mechanical wear resistance: 3?105 commutation cycles
- Operating temperature: -10°? - +50°?
- Humidity: 35 - 85%RH
- Commutation capacity: 25-160A
- Resistant to UV rays plastic
- Cable connection: screw joining
- Tightening torque of the bolt: 1.33Nm
- Maximum section of the power supply conductors: 16.0mm2


Mounting:
- Directly to the control panel
- Thickness of the surface: max 5mm


Standards: EN 60947-1; EN 60947-3-1





190.04 €+Áfa=241.35 €/db
