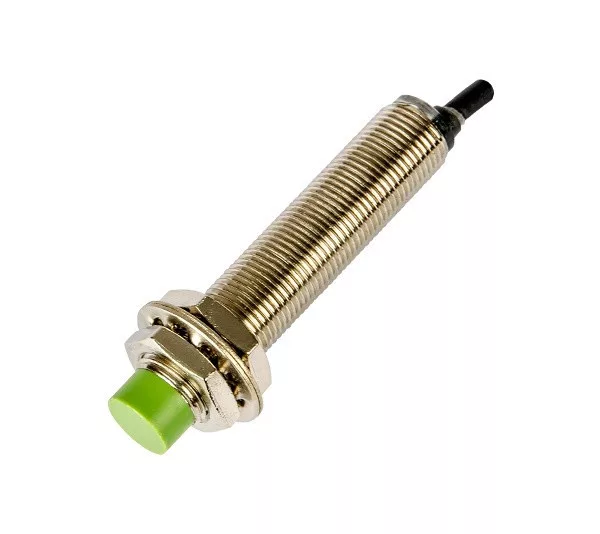

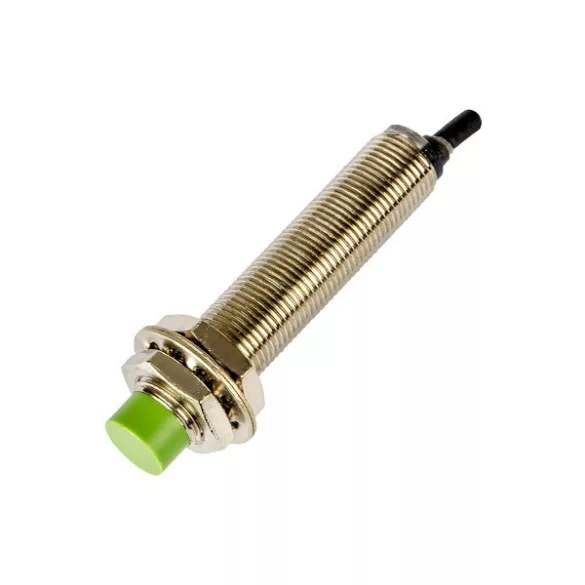

KÖZELÍTÉSKAPCSOLÓ EL-LM12-3004PA DC

Proximity induction sensors are all-purpose switches used in machine systems and equipment for no contact
surveillance of metal elements motion. They can also be used in other machine systems applications as no contact
control sensors for level of liquids, control sensors for the speed and position of rotating chains, etc. They are
developed on the base of PNP and NPN transition. They have small dimensions and feature a metal cylindrical shell
resistant to vibrations and a plastic lid which is oil and water resistant.

Technical characteristics:
- Insulating resistance: ≥ 50 M Ω
- Gearing distance: from 2 mm to 7 mm
- Precision of repetition: 0.01
- Ambient temperature: -25°? to +65°?
- Gearing speed: 5mm/s
- Rated voltage: 6~36VDC; 90~230VAC
- IP code: IP 67
