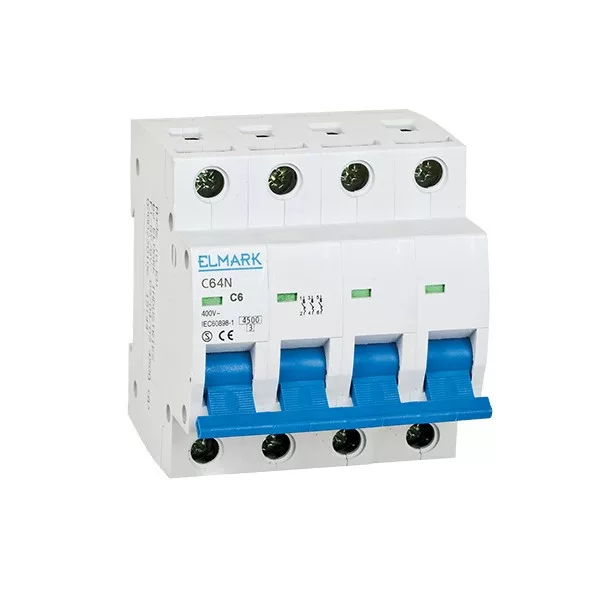

KISMEGSZAKÍTÓ 64N/4A 4P CURVE C

KISMEGSZAKÍTÓ 64N/4A 4P CURVE C

Technical characteristics:
- Rated operating voltage: 230/400V; 50/60Hz
- Rated current: 1-63A
- Breaking capacity: 6000A
- Poles: 1, 2, 3, 4
- Tripping curve: B, C
B - The maximum current release breaks between 3 and 5 In; used to protect long circuits and generators
? - The maximum current release breaks between 5 and 10 In; used to protect main power supply cables and conventional consumers
- Electrical wear resistance (number of cycles): ≥8000
- Mechanical wear resistance (number of cycles): ≥50000
- Limitation class: 3
- IP code: IP>20
- Ambient temperature: -5 to +65°?±2°?


Mounting: Vertically on a DIN rail


Standard: EN60898-1


17.79 €+Áfa=22.59 €/db
