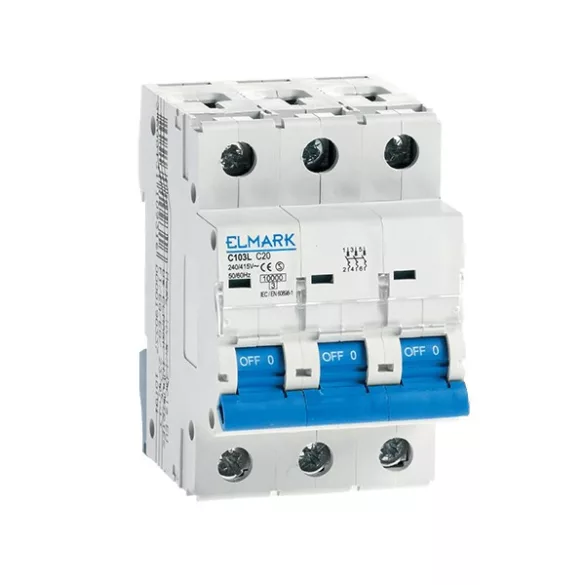

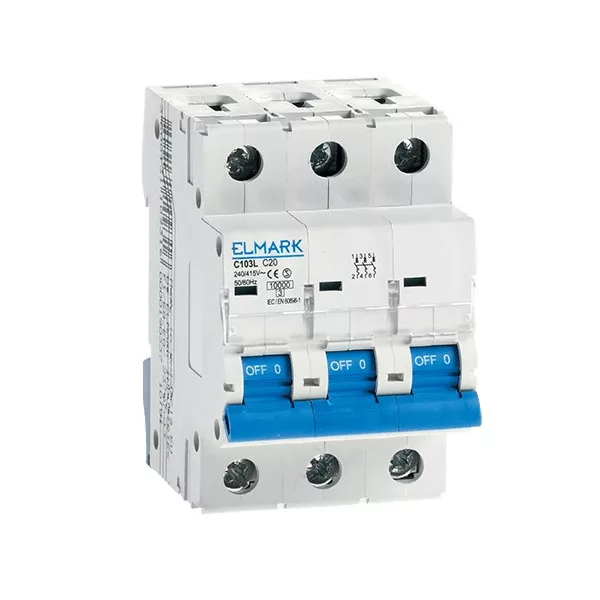

KISMEGSZAKÍTÓ C103L/40A 3P CURVE C

Technical characteristics:
- Rated operating voltage: 230/400V; 50/60Hz
- Rated current: 6-63A
- Breaking capacity: 10 000 A
- Poles: 1; 2; 3
- Tripping curve: C
? - the maximum current release breaks between 5 and 10 In; used to protect power supply cables and conventional consumers

-  Electrical wear resistance (number of cycles):≥4000
- Mechanical wear resistance (number of cycles):≥20000
- Limitation class: 3
- IP code: IP>20
- Ambient temperature: -5 to +65°?±2°?

Mounting: Vertically on a DIN rail

Standards: EN60898-1; EN60947-2
