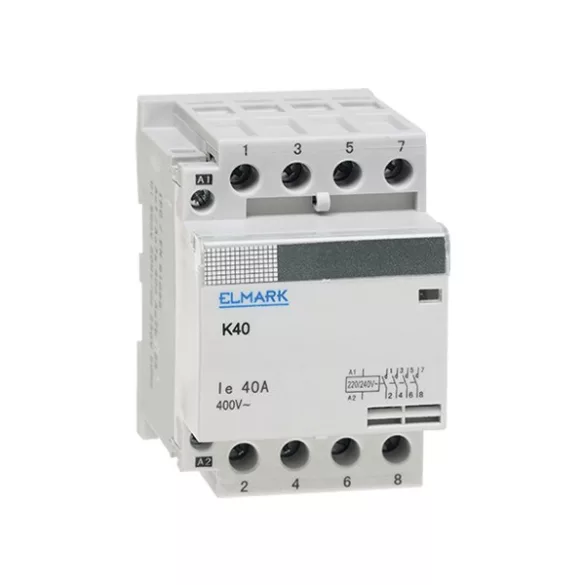

K SZÉRIA MODULÁRIS MÁGNESKAPCSOLÓ K40 63A 230 3NO+1NC

Technical characteristics of K series:
- Rated current: 20-63A
- Operation class: A? 7a
- Rated operating voltage of the controlling coil: 230V AC;50/60Hz
- Rated operating voltage of the power circuit: up to 690V A?
- Number of power contacts: 2-4
- Insulation voltage : 690V
- Surge voltage wear resistance: >8000V
- Operating temperature: -10 to +65°C
- Maximum altitude: 2000m

Advantages:
- High reliability of the current parameters
- Secure switching ON or separation of the power contacts
- Compact sizes
- Low levels of operational noise
- Options for selection ot the type of power contacts
- Resistant to UV rays

Functions:
- Switching ON/OFF of electrical circuits under load
- Developing of systems for control of consumers
- Operational element in control boards

Applications:
- Industry
- Administrative and public buildings

Mounting: On a DIN rail or vertical position with maximum gradient of ±5°

Standards: EN61095; EMC; LVD
