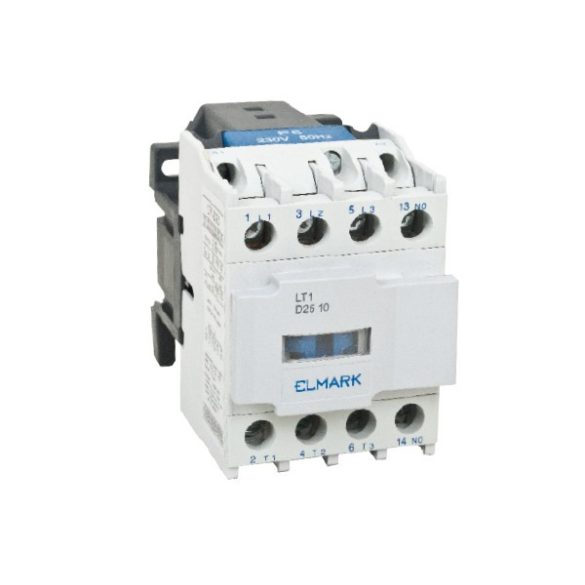

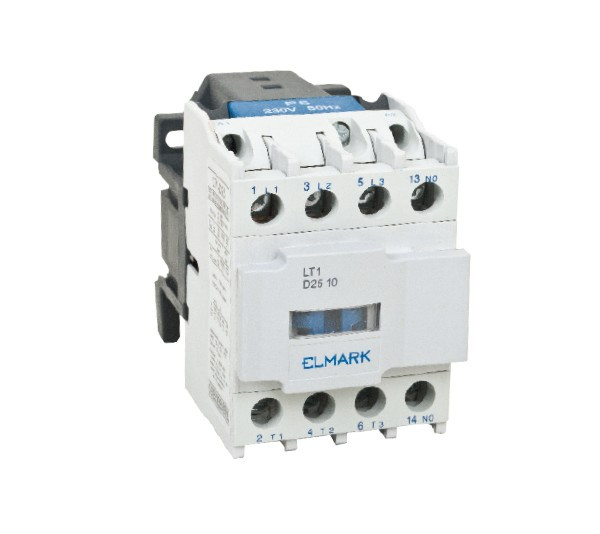

KISFESZÜLTSÉGŰ KONTAKTOR LT1-D 25A 48V 1NO

Technical characteristics:
- Operation class: A?-3
- Rated current: 6-95A
- Rated operating voltage of power contactors: up to 690V; 50/60Hz
- Surge voltage wear resistance: >8000V
- Rated operating voltage of the coil: 12/24/36/48/110/230/400
- Electrical wear resistance (number of cycles): ≥1000000
- Mechanical wear resistance (number of cycles):≥10000000
- Number of cycles (switchings ON) per hour:
   6-32A - 1200cycles
   40-95A - 600cycles
- Pole leaking power: up to 13W
- Ambient temperature: -10°÷60º?
- Maximum altitude: up to 2000m

Mounting: on a DIN rail or using bolts to a flat surface in a vertical position with maximum gradient of ±5°

Standards: EN60947-1; EN60947-4-1
