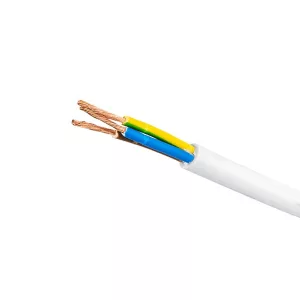

ELEKTROMOS KÁBEL H03VV-F 3X0.5MM2 0.3kV

Designed for connecting of electrical appliances, mobile
consumers and devices to electrical network.

Technical characteristics:
- Manufactured according to BDS 5099-79
- Rated voltage: U0/U - 300/300V
- Test voltage: 2000V
- Insulation resistance at 60°C: min. 2x10¹° Ω.cm
- Maximum conductor temperature: +60°C
- Maximum conductor temperature at short circuit for 5 sec: +150°C
- Ambient temperature:
   - Flexing installation: -5°C to +50°C
   - Static installation: -30°C to +50°C
- Minimum temperature during unstallation: -5°C
- Minimum bending radius during installation:
   - Flexing installation: 15D
   - Static installation: 4D
- D - cable height
- Flame test: flame retardant BDS IEC 332-1
- Sheath colour: white, gray (or any colour on customer request)

Construction:
- Stranded Copper wires
- Flexibility class: 5 and 6 according to IEC 228
- Insulation: PVC
- Sheath: PVC
