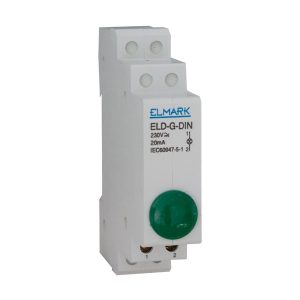

ELD-Y-DIN JELZŐLÁMPA 230 SÁRGA

Technical characteristics:
- Insulation voltage: 660V; 50/60Hz
- Surge voltage wear resistance: 6000V
- Rated current: up to 10A (230V A?)
- Short circuit protection: breaker 10A gG outside of the circuit
- Rated consumed current (for indicators and buttons combined with indicators): <20mA
- Wear resistance (indicators): >2000h
- Mechanical wear resistance (buttons): 1?106 commutation cycles
- Mechanical pressure strength:
  = At closing: 20N
  = At opening: 8N
- Operating temperature: -20° to 65°?
- Humidity: 35-85%RH
- Connecting wires torgue: 0.15Nm
- Section of the conductor : 1?0.5; 1?0.75; 1?1; 1?1.5; 1?2.5mm2
- Plastic: resistant to UV rays

Mounting: On a DIN rail

Standard: EN60947-1; EN60947-5-1
