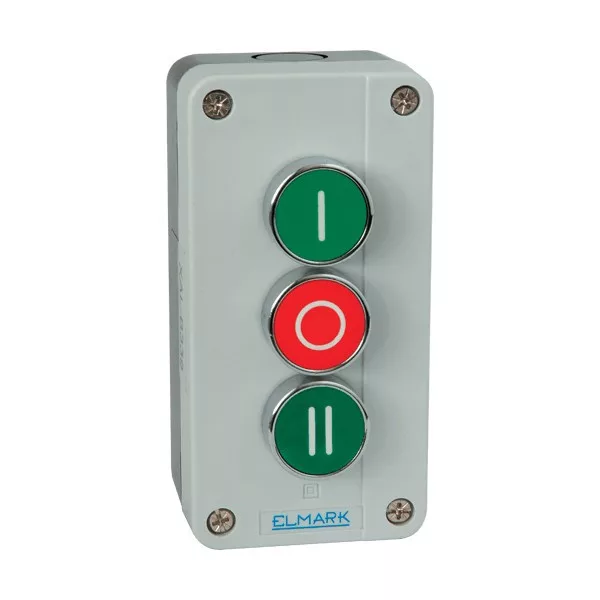

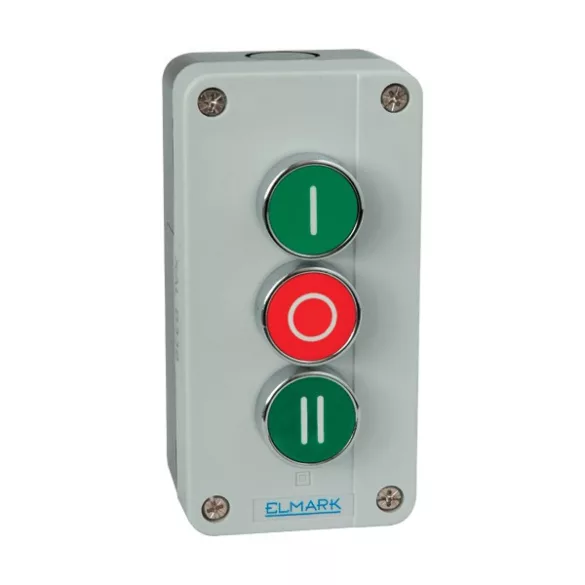

TOKOZOTT NYOMÓGOMB B339 1NO;1NC;1NO IP44 1 ZÖLD, 1 PIROS, 1 ZÖLD

Technical characteristics:
- Insulation voltage: 660V;50/60Hz
- Surge volatge wear resistance: 6000V
- Rated current: 6A(230V A?); 0.3A(230V DC)
- IP code: IP44
- Short circuit protection: breaker 10A gG outside of the circuit
- Mechanical wear resistance: 1?106 commutation cycles
- Operating temperature: -20° to 70°?
- Humidity: 35-85%RH
- Connecting wires torque: 0.15 Nm
- Section of the conductor: 1?0.5; 1?0.75; 1?1; 1?1.5; 1?2.5mm2

Mounting:
- To a flat metal or plastic surface with thickness: max 4m
- Size of the opening: Ø22.5mm

Standards: EN60947-1; EN60947-5-1
