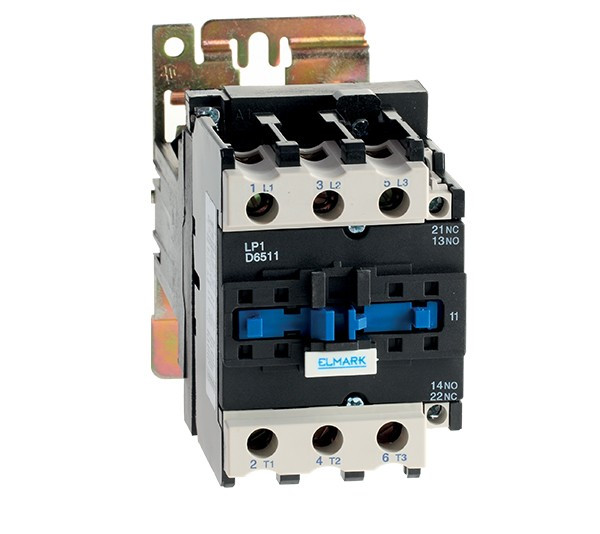

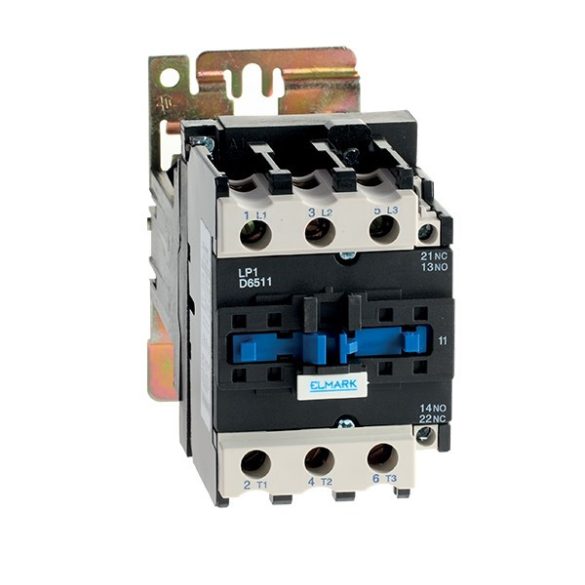

EGYENÁRAMÚ KONTAKTOR LP1-D 18A 24VDC 1NO

EGYENÁRAMÚ KONTAKTOR LP1-D 18A 24VDC 1NO

Technical characteristics:
- Rated current: 9-225A
- Rated operating voltage of the controlling coil: 12V DC to 220V DC
- Rated operating voltage of the power circuit: up to 690V A?
- Insulation voltage: 690V
- Surge voltage wear resistance: >8000V
- Electrical wear resistance (number of cycles): ≥10000000
- Mechanical wear resistance (number of cycles): ≥10000000
- Number of cycles per hour: 1200pcs up to 32A; 600pcs for 40-95A
- Ambient temperature: -10° to 65º?
- Maximum altitude: up to 2000m


Advantages:
- Material: resistant to UV rays, self-extinguishing
- High reliability of the current parameters
- Suitable for using in highly contaminated operating environment
- Secure separation of the power contacts
- Easy mounting
- Long life
- Suitable for frequently switching ON/OFF consumers


Functions:
- Switching ON/OFF of alternating current consumers in direct current controlling schemes
- Implementation of consumer control management


Applications:
- Industry
- Transport
- Telecommunications



Mounting: On a DIN rail or using bolts to flat surface in a vertical position with maximum gradient of ±5°


Standards: EN60947-1; EN60947-4-1; LVD; EMC
