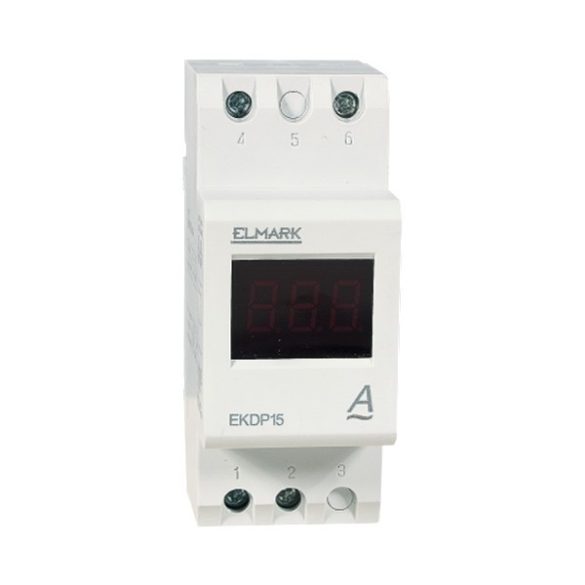

AMPERMÉRŐ TYPE EKDP-15AA AC

Technical characteristics:
- Power supply voltage: 100-240V,50Hz
- Adjusted to measure:
  = Direct current (AD,DV) values
  = Alternating current (AA,VA) values
- Input signal:
  = Operating as voltmeter : 2-700V (the range is adjusted from inside)
  = Operatind as amperemeter: 5-2000A (the range is adjusted from inside)
Note: At current range over 5A a current measurement transformer should be used
- Consumption: <5VA
- Surge voltage wear resistance: 4000V,50Hz (1 min)
- Operating temperature: -5° to 65°?
- Humidity: 35-85% RH
- Accuracy: 0.5% from the whole scale
- Display: LCD

Mounting: On a DIN rail

Standard: EN61010-1
