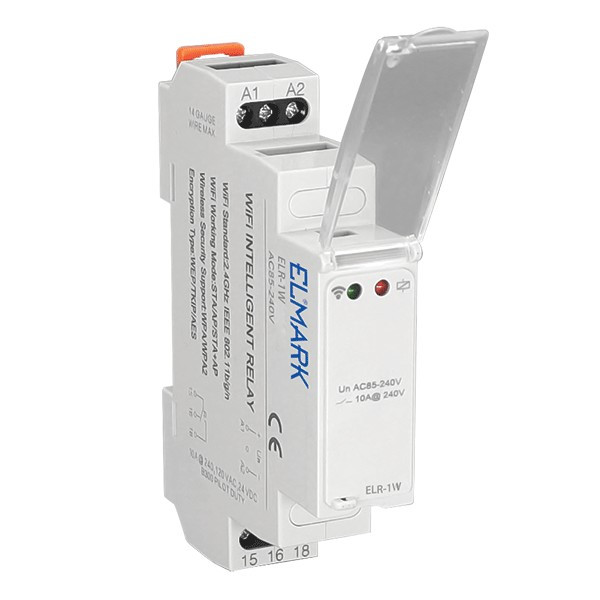

ALR-1W WI-FI RELAY BUILT ANTENNA 10A 85-240V AC/DC

ELR-1W is widely used in smart homes and industrial intelligent control. It adopts the most

popular Wi-Fi 2.4GHz control chip, and cooperates with powerful APP and mainstream voice

assistants. Realize WLAN local control (even if the network is disconnected, you can also use APP local control and remote control, allowing users to fully experience the convenient life brought by

modern intelligent technology. Using mobile phone APP or voice control device to control ON and OFF of the output of this product to realize the purpose of remotely starting or turning off the load electrical appliances. The product cooperates with the corresponding APP to realize the following functions:

• Support Smart Config for fast networking.

• Support multiple control types: switch, timing start and stop, cycle control, etc.

• Support WLAN local control and remote control.

• Access to mainstream voice assistants such as Tmall Genie, DuerOS, Xiao Ai (Xiao Mi), Alexa,

Google, etc., voice control.

• Intranet device sharing and cloud account device sharing function.

• APP supports Android and iOS systems.

Technical data:

Voltage range: 85-240 V AC/DC

Rated current: 10A

Standard: IEEE 802.11b/g/n

Working mode: STA/AP/STA+AP

Wireless Security: WPA/WPA2

Working frequncy: 2.4 GHz - 2.5 GHz (2400M-2483.5M)

Transmit power:

802.11b (CCK): 19+/- 1dBm

802.11g (OFDM): 14+/- 1dBm

802.11n (HT20@MCS7): 13+/- 1dBm

Wireless Transmission distance:

Indoor: 45M

outdoor: 150M (note: it depends on the environment)
